Portable 1200W diode laser 808nm / triple wave hair removal machine

Product Details

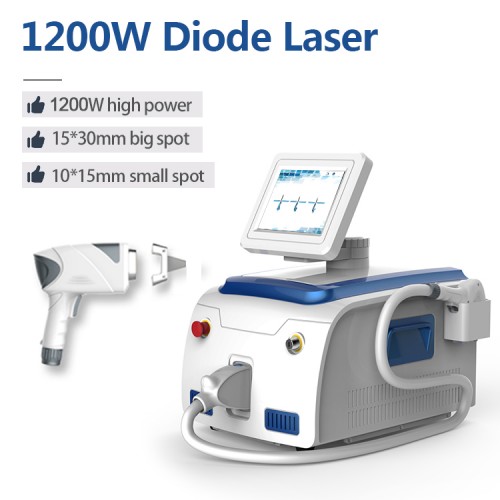

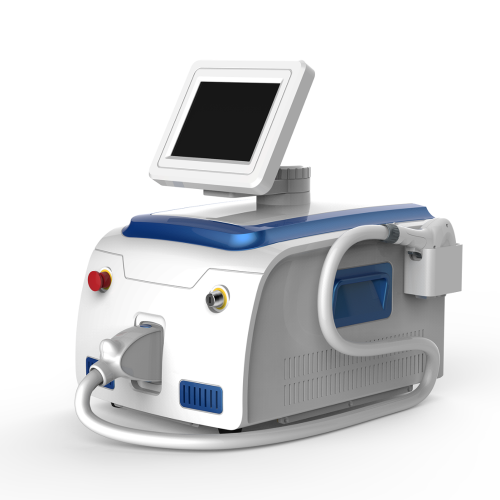

ALD Portable 1200W diode laser 808nm / triple wave hair removal machine

Product Description











 Specification



Specifications	808nm Diode laser /triple wavelength 808 755 1064nm
Lifespan	20 million shots
Power	Super power 1200W for laser, 3000W for machine
Spot Size	Super big spot 15*30mm, with a replaceable small tip 15*10mm
Wavelength	808nm or 755+1064+808nm 3 in 1 triple wavelength
Energy Density	1-166J/cm2
Pulse Frequency	1-10Hz
Pulse Duration	10-400ms
Laser bar	100% Pure AuSn bars from US Coherent /German Dilas
Cooling Level	Sapphire Crystal + Air + Water Circulation + Semiconductor +TEC
Display	10.4 inch True Color LCD touchable Screen
Stand-by Working	Continuous stand-by working for 10-12hours
Electrical	100/110V, 50~60Hz, /230V~260V,50~60Hz
Net Weight	36KGS
Packing Dimension	64*58*53 cm (W*D*H)

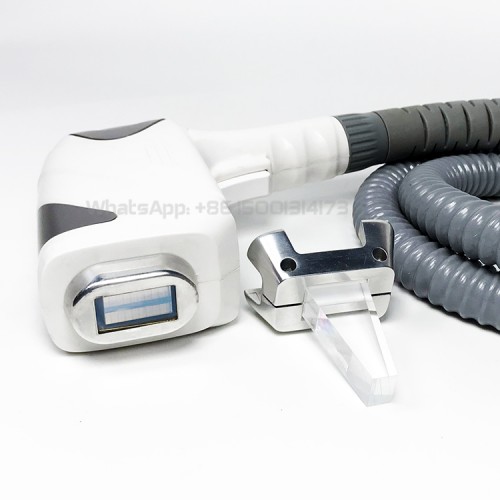

Handle details:

High power and two spot size to meet fast hair removal and hair removal effect.

The 1200W laser output power ensures that the handpiece can output enough energy to achieve the hair removal effect.

Big spot size 15*30mm is suitable for fast hair removal in large areas - such as leg hair or back hair.

Small spot size 10*12mm is suitable for small areas of fine hair removal - such as lip hair or finger hair.



Laser bar: 100% Pure AuSn laser bars, 1200W super power

T-Shaped Sapphire: Cone shaped crystal focus light together to the treatment spot size, makes energy more powerful and performance more effective.

TEC Cooling plate: Cools the skin continuously during treatments. Minimizes the risk of burns on the epidermis while maintaining heat to penetrate dermis where hair follicles are.



Machine details:

Upgraded 3000W super power supply 6L big water tank with water level monitor Korea imported water filter Schneider brand switch Japan imported big fans +  big radiator Latest brushless DC water pump with lift 15m Pulse water switch to monitor water flow Stainless steel board between connector and internal

 Interface 10.4” adjustable true color touch screen.Intelligent parameters against skin type/hair thickness/man & women/body parts.Saving 4000 customer treatment records, very convenient for salon.12 languages available.Intelligent alarming system.Free interface OEM service.Your LOGO can be added!

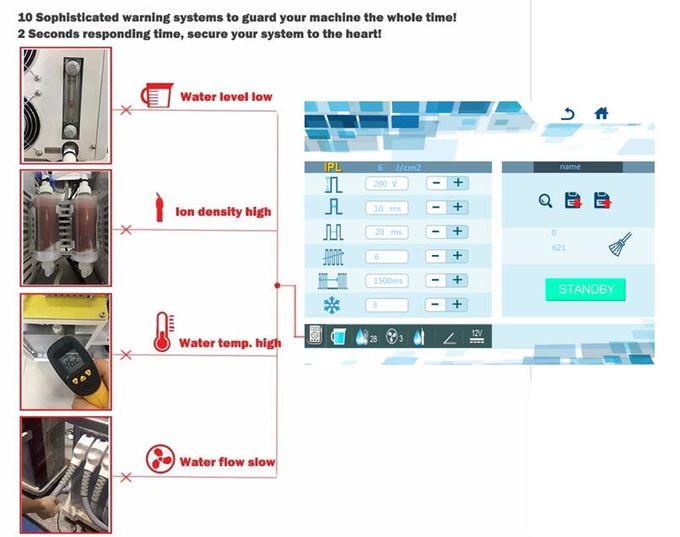

Impeccable Alarming System:



Each line stands for a specific part in the machine.

Each of our machine has been stricktly tested before dispatching to you, but in case there is any problem after a period's using, you can check this interface.

If there is any line turns to yellow, it means the part it refers to has problem, so that we can send a new alternate to you immediately to reduce the repairing time for your client.

 Pssword lock system for rent business  It is a great function for distributors who have business of renting machines. It allows distributor to control the machine from a distance! For example, Lynn has rented this machine for 1 month, you can set a 1 month password for her. After 1 month the password will be invalid and machine will be locked. If Lynn wants to continuously use machine, she must pay for you first. If she pay you 10 days, you can offer her a 10 days password, if she pay you 1 month, you can offer her a 1 month password.It is very convenient for you to control your machines! Besides, this function is also workable for installment clients!





working principle



It uses a technology based on selective dynamics of light and heat.

The laser light is absorbed by the melanin in hair follicles and converted into heat increasing the hair follicle temperature which raises high enough to irreversibly damage the hair follicle structure.

The hair will disappear after a natural follicles physiological process and achieve the purpose of permanent hair removal.

The laser energy is selectively absorbed by the hair follicle, so the surrounding tissue will not be overheated and no lasting damage.





Before and after



Company Profile



Certificate



Exhibition Team



Payment method



FAQ

Q1: Delivery methods ?

we can offer the door to door service by air or by sea, just depend on your actual  request. Such as DHL, UPS, TNT, FEDEX…by air; and the sea transportation to all  over the world, including America, Canada, Brazil, Russia, Mexico etc.

Q2: What's package ?

strong and beautiful aluminum alloy box for long distance transportation.

Q3: Delivery time ?

after we get the payment  within 3-7 working days.

Q4: After sale service or technology supports ?

we have a professional technology supporting team for your timely services.  We prepare the technical documents for you, also you can contact us by telephone,  online chat (Skype, Google talk, MSN, Yahoo…).

Q5: OEM & ODM service ?

we offer professional services on software & hardware design







Specifications	Diode laser triple wavelength / 808 755 1064nm
Lifespan	40 million shots
Power	1200W for laser 3000W for machine
Spot Size	15*30mm & 10*12mm
Wavelength	808nm
Energy Density	1-300J/cm2
Pulse Frequency	1-10Hz
Pulse Duration	30-300ms
Laser bar	12 laser bars each bar 100W  pure AuSn bars from US Coherent /German Dilas
Cooling Level	Sapphire Crystal + Air + Water Circulation + Semiconductor +TEC
Display	10.4 inch True Color LCD touchable Screen
Stand-by Working	Continuous stand-by working for 10-12hours
Electrical	100/110V, 50~60Hz, /230V~260V,50~60Hz
Net Weight	33KG
Packing Dimension	63*57*52cm (W*D*H)





Advantages



1.Two in one spot size, with big spot 15*30mm for large area treatment, and 10*12mm for small size treatment.

2.12 pure bars from US Coherent, each laser bar 100W, totally 1200W super power for laser.

3.High power of 3000W for the machine.





Handle Details



Super power 1200W, greatly shorten the hair removal time!

15*30mm big spot size for large area hair removal treatment, such as back hair.

10*12mm small spot size for small area hair removal treatment, such as lip hair.





Machine Details



Super power supply of 3000W US Coherent / German Dilas laser bars, 100% pure AuSn bars, ensure 40 million shots lifespan Double Korea imported water filters, to filter out the impurities and ions from water, so that can protect our US Coherent laser bars very well, thus can greatly prolong the lifepsan of diode laser. 2 thickest aluminum radiators plus 4 big fans to ensure the excellent heat dissipation effect. Heat dissipation system is very important for the lifespan and quality of the machine. Copper radiator V.S. Alum radiator: some companies may use the copper radiator and say copper radiator is better. That is a huge mistake, indeed copper has better heat conductivity, but it also produce copper rust which is easy to pollute the water and burn the xenon lamp. 6L stainless water tank Latest brushless DC water pump, with lift 15m. Compare with the outdated magnetic drive pump, the brushless DC pump we use has much lower noise and much higher water flow speed. High water flow speed means it can take away the heat very quickly and protect the machine. Schneider switches









Software:





Professional and easy to use software interface.

According to different genders, skin color, hair thickness, body parts, automatic recommendation parameters. The software has rental model that allows distributors to control machine from a distance. Can store 80,000 customer records. Real time detect the status and voltage of machine,to ensure machine stability and easy maintenance.   15 languages available Impectable alarming system. Free interface OEM service. Can add your Logo







Password Lock function for renting business

It is a great function for distributors who have business of renting machines. It allows distributor to control the machine from a distance!



For example, Lily has rented this machine for 1 month, you can set a 1 month password for her. After 1 month the password will be invalid and machine will be locked. If Lily wants to continuously use machine, she must pay for you first. If she pay you 10 days, you can offer her a 10 days password, if she pay you 1 month, you can offer her a 1 month password.

It is very convenient for you to control your machines!

Besides, this function is also workable for installment clients!

Before and After
