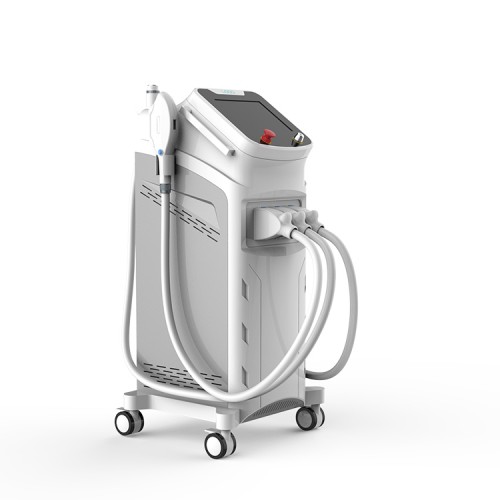

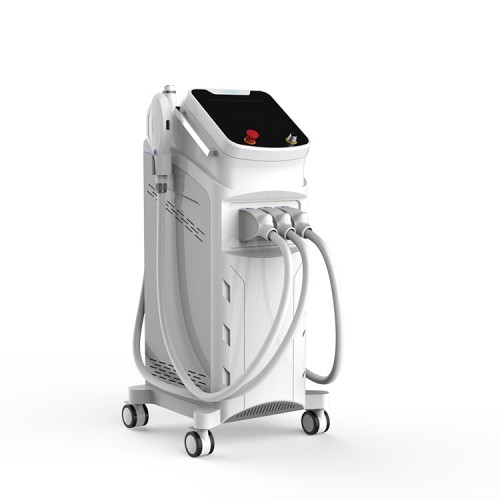

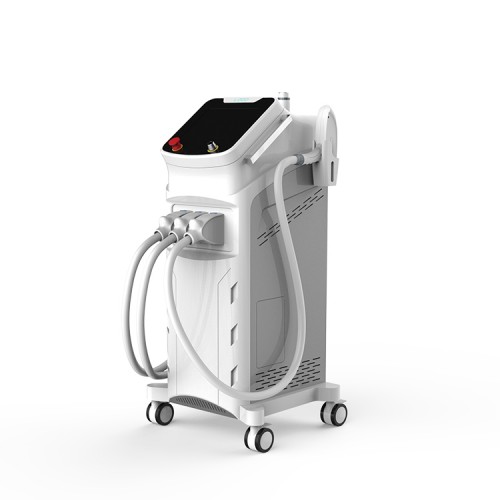

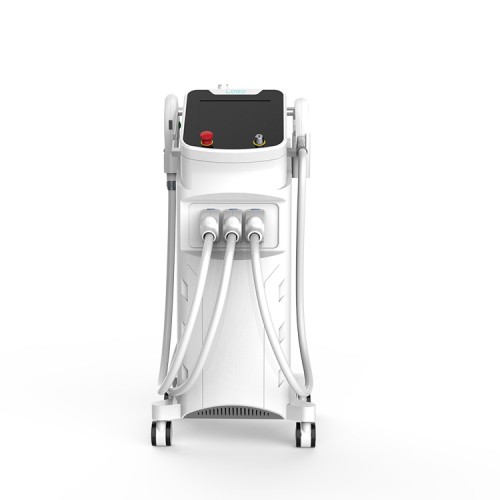

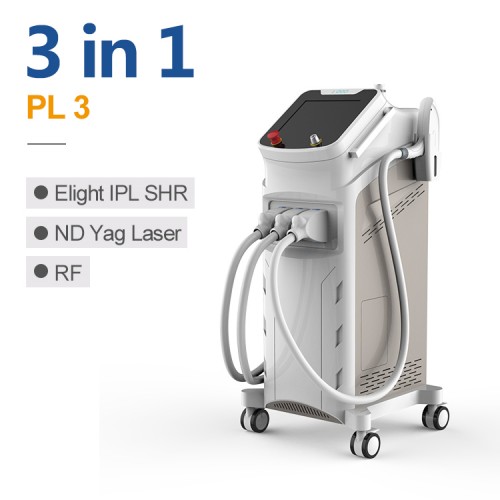

4 in 1 laser IPL + Elight + RF + ND yag laser carbon peeling / ipl laser hair removal

Product Details

PL3 new 4 in 1 laser IPL + Elight + RF + ND yag laser carbon peeling / ipl laser hair removal

Product Description



Specification

Specifications	E-light / IPL / SHR			Nd: Yag laser		RF
Lifespan	1 million shots			3 million shots		Unlimitted
Power	2000W			500W		100W
Spot Size	15*50mm/ 12*30mm			1-10mm		3 tips
Wavelength	480/530/640nm			532/1064/1320nm		/
Energy Density	E-light: 1-50J/cm2			1000mJ/cm2		1-50W
	SHR: 1-26J/cm2
Pulse Frequency	1-10Hz			1-10Hz		1-10Hz
Pulse Duration	E-light: 1-10ms			20-30ns		/
	SHR: 1-15ms
Pulse Delay	E-light: 1000-300ms			/		/
	SHR: 1-30s
Laser Bars/ Lamp	UK Xenon lamp			Φ6 + UK Xenon lamp		/
Cooling Level	Sapphire Crystal + Air + Closed Water Circulation + Semiconductor +TEC
Display	10.4 inch True Color LCD touchable Screen
Stand-by Working	Continuous stand-by working for 10-12hours
Electrical	100/110V, 50~60Hz, /230V~260V,50~60Hz



Advantages

Most advantage technology, combining diode laser, E-light, Nd:yag laser and RF in one. Independent power supply for each system, high and stable quality. Intelligent interface, with preset treatment parameters, very easy to operate. Advanced monitoring and alarming system, protecting machine every second. Password lock function makes renting business much easier to control.



Machine details

Can do 2-4 handles multifunctional laser free combination from 4 handles. Take 4 handles as example here.



Independent power supply for each system. This well ensures each system has strong and stable energy.

2000W power supply for diode laser system 2000W power supply for E-light (IPL SHR E-light) system 500W power supply for ND yag laser system 100W power supply for RF system





Inside structure is very reasonable and every line is clear.

All the spare parts are fixed to metal shelf, reduce the harm of the collision to least during shipping.



UK lamp, US laser bars 8L big water tank with water level monitor 2 Korea imported water filters Schneider brand switch 2 Japan imported big fans + 1 big radiator Latest brushless DC water pump with lift 15m Pulse water switch to monitor water flow Stainless steel board between connector and internal



Handle details



Elight IPL SHR





UK imported xenon lamp TWO EXTRA Korea imported water filters Unbelievable lifespan of 1,000,000 shots, at least 5 times longer than others!



As we all know, the laser bar in diode laser has very high demand for water quality, so in every diode laser machine there will be water filter.

But since xenon lamp doesn't have that high demand for water, so no factory will apply water filter in IPL series machines.

But we applied, we applied TWO EXTRA water filters to protect our UK imported xenon lamp.

PP cotton filter is to filter out the big impurites from water, and Ion filter is to get rid of the ions from water. This can greatly prolong the lifespan the lamp to 1 million shots.



ND YAG laser

Super long life of 3 million shots, at least 5-10 times longer than others! UK xenon lamp + Φ6 rod Big and round spot size, very uniform energy output



Other only offer 2 tips while we offer 3 tips to cover all customer needs.



532nm wavelength: get rid of freckles, eyebrow tattoo, failed eye line tattoo, tattoo , lips line, pigment, telangiectasia in shallow red, brown and pink and etc. light color



1064nm wavelength: get rid of freckles and yellow brown spot, eyebrow tattoo, failed eye line tattoo, tattoo, Birthmark and Nevus of Ota, pigmentation and age spot, nevus in black and blue, scarlet red, deep coffee and etc. deep color.



1320nm wavelength: shrink pores removal, poblackhead removal, skin tightening and whitening, skin rejuvenation, wrinkle removal .





Ice RF

3 treatment tips for different area:

Small (21mm): for eye round treatment Middle (27mm): for face treatment Big (36mm): for body treatment



Unlimited shots as long as there is power supply





Interface & Software

10.4’ true color touch screen. Easy operate interface. Can save 4000 customer treatment records, very convenient for salon. 12 languages available Impectable alarming system. Free interface OEM service. Can add your Logo









Impeccable Alarming System:



Each line stands for a specific part in the machine.

Each of our machine has been stricktly tested before dispatching to you, but in case there is any problem after a period's using, you can check this interface.

If there is any line turns to yellow, it means the part it refers to has problem, so that we can send a new alternate to you immediately to reduce the repairing time for your client.







Password Lock function

Newly added Password Lock function is a great function for renting business. It allows distributor to control the machine from a distance!

For example, Lily has rented this machine for 1 month, you can set a 1 month password for her. After 1 month the password will be invalid and machine will be locked. If Lily wants to continuously use machine, she must pay for you first. If she pay you 10 days, you can offer her a 10 days password, if she pay you 1 month, you can offer her a 1 month password.





Feedback



Product Display



Company Profile



Certificate



Exhibition Team



FAQ

Q1: Delivery methods ?

we can offer the door to door service by air or by sea, just depend on your actual request. Such as DHL, UPS, TNT, FEDEX…by air; and the sea transportation to all over the world, including America, Canada, Brazil, Russia, Mexico etc.

Q2: What's package ?

strong and beautiful aluminum alloy box for long distance transportation.

Q3: Delivery time ?

after we get the payment  within 3-7 working days.

Q4: After sale service or technology supports ?

we have a professional technology supporting team for your timely services. We prepare the technical documents for you, also you can contact us by telephone, online chat (Skype, Google talk, MSN, Yahoo…).

Q5: OEM & ODM service ?

we offer professional services on software & hardware design
