G6 Fully Automatic Pallet Wrapper

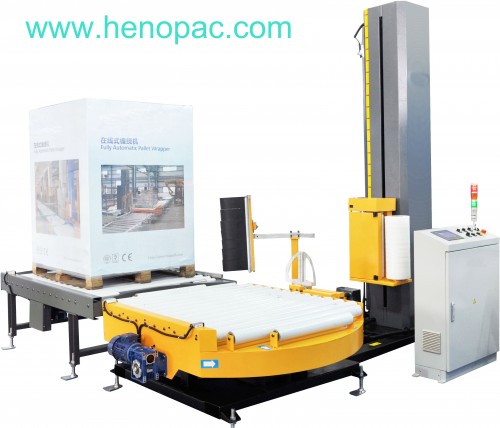

The picture of the system:
The aim of the project system:
1. Meet the modern packaging demands
2. Improving the packing efficiency
3. Reduce the labor
4. Reduce the packing cost of the company
The machine’s Parameters and Specifications
Technical Parameter
|
Wrapping size |
W(800-1200)*L(800-1200) |
|
Turntable diameter |
∮2000mm |
|
Turntable height |
500mm (customize) |
|
Wrapping height |
1800mm |
|
Loading weight |
2000kg |
|
Packing speed |
25-45 pallets/hour |
|
Turntable speed |
3-15 rpm (adjustable) |
|
Carriage speed |
3m/min (adjustable) |
|
powered pre-stretch film carriage |
,ratio:250% film tension can adjustable |
|
Film type |
thickness 17-35microns, width 450-500mm, paper core 76mm, max diameter 250mm |
|
Roller size |
T3.0*∮76*1350mm |
|
Material roller |
Galvanized carton steel |
|
Air pressure |
0.4-0.7 Mpa |
|
Voltage |
3 Phase 5 lines AC 380V 50Hz |
|
Control system |
PLC+HMI+ Frequency inverter |
Description:
|
1. PLC + HMI + Frequency inverter to control 2. Automatic/Manual exchange control 3. All parameter adjustable by HMI 4. turntable speed ,film carriage speed and the film tension can adjustable 5. Automatic stretch film apply & cut ,Pneumatically driven 6. Powered pre-stretch film carriage, ratio is 250% 7. turntable home position 8. the turntable have the brake function 9. The structure of the turntable is the slewing bearing 10. Automatic detection the height by the photocell 11. Alarm and Emergency Button 12. All core component adopt the famous brands, very durable 13. Film broken alarm and stop the machine 14. Machining by the laser 15. The turntable rotary and film carriage are soft start and stop 16. The motors are heavy load ,over voltage ,over current protect by the AC frequency inverters 17.The system easy to operate and humanization high safety design |
The core component:
|
NO. |
Item |
From |
brand |
|
1 |
PLC |
Japan |
Mitsubishi |
|
2 |
HMI |
Taiwan |
Weinview |
|
3 |
AC frequency inverter |
France |
Schneider |
|
4 |
Cylinder |
Taiwan |
SHAKO |
|
5 |
Electric valve |
Taiwan |
SHAKO |
|
6 |
Proximity switch |
Taiwan |
FOTEK |
|
7 |
Limited switch |
Germany |
STEIMEX |
|
8 |
AC contactor |
France |
Schneider |
|
9 |
motors |
Taiwan |
Liming |
|
10 |
Gear boxes |
Taiwan |
Liming |
|
11 |
Turntable structure |
China |
Slewing bearing |
Quotation
|
Item |
Unit price (USD/price) |
Quantity |
total |
|
G6 Fully Automatic Pallet Wrapper |
$13500 |
1 |
$13500 |
Remark:
1. Price terms: FOB Shenzhen price.
2. Terms of Payment: 50% down payment by T/T , the balance will be paid before delivery . 3. Term of Delivery: 30-40 days after receive the balance payment.4. Warranty: We offer you 12 months component service since the delivery date.
5. your goods not has the black and transparency parts.
6. Packing: the goods are packaged suitable for sea-worthy shipping
7. If you need us to help assemble and test.customer pay all travelling expense
Personnel charges US$100/person/day commission to assemble and test in customer’s factory.
