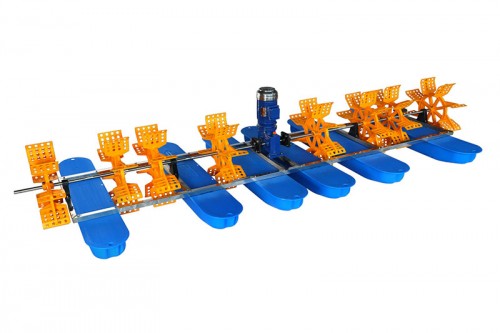

paddle wheel aerator

Product Details

Product introduction:

Tested by the China National Fisheries Machinery and Instrument Quality Supervision and Inspection Center in July 2009, all nine parameters show that Jinhulong paddle wheel ae「ato「has proved to meet the requirement of industrial standard SC/T6017-1999, including oxygen transfer「ate at 2.59kg/h, surpassing the standard 36.3%, power efficiency at 1.71 kg/k.W.h, surpassing the standard 36.8%. All test results show our paddle wheel aerator will make significant effect on sewage discharging at the bottom of the semi-intensive and intensive ponds.

Motor: 1hp 3phase/1phase 50hz/60hz 4spline chinese type 100% copper wire

Reducer: Bevel gear type Gear:Chromium-maganese-titanium

Impellers: we have different design, new materail HDPE with UV protecting

Float: new materail HDPE with UV protecting

Frame: 304 stainless steel

Shaft: 304 stainless steel

Technical parameter

Model Power Voltage V/50Hz Power efficiency (kg/kW.h)  DO (kg/hr) AMP (A) Weight (kg) 40 Container set

kW HP

YC-0.75 0.75 1 220 ≥1.25 ≥1.6 1.25 80 185

YC-0.75 0.75 1 380 ≥1.25 ≥1.6 1.25 80 185

YC-0.75 0.75 1 380 ≥1.25 2.3~2.6 1.60 80 185

YC-1.5 1.5 2 220 ≥1.25 2.6~2.9 2.45 100 133

YC-1.5 1.5 2 380 ≥1.25 2.8~3.1 2.45 100 133

YC-1.5 1.5 3 380 ≥1.5 3.6~3.8 2.60 120 66

YC-2.2 2.2 3 380 ≥1.5 4.0~4.3 2.80 125 63

YC-2.2 2.2 3 380 ≥1.5 4.3~4.6 3.0 135 60

An Two-Impeller paddle wheel aerator with different voltage, frequency and power can be manufactured according to customer requirements.
