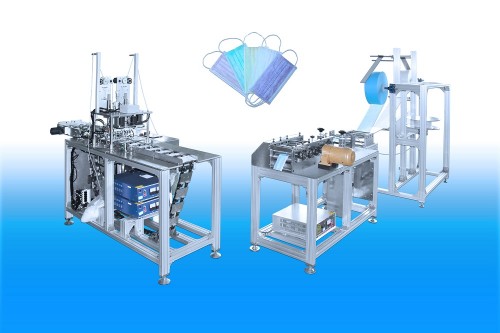

Automatic mask body machine(Mask making machine)

Automatic mask body machine(Mask making machine)

FOB Price: $1- $30000

1 Pieces (Min. Order)

MOQ.: 1 Pieces
Packaging: Wooden box
Port Shanghai
Lead Time 35-55deys

Quick Details

Equipment size	4200mm (L) x 1100mm (W) x 2200mm (H)
equipment weight	1600KG
Operating Voltage	AC220V，50/60HZ, Rated power: 4KW
Compressed air	0.5-0.7Mpa
Use environment	Temperature 10-35 ℃, humidity 5-35% HR, no flammable, corrosive gas, no dust

Product Details

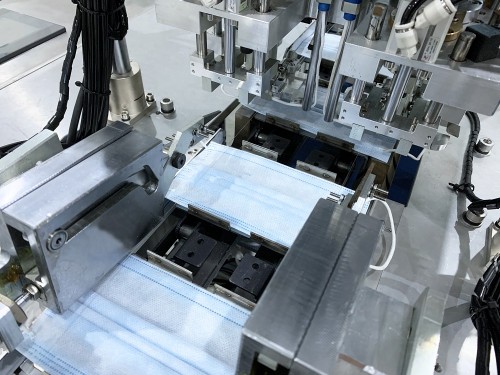

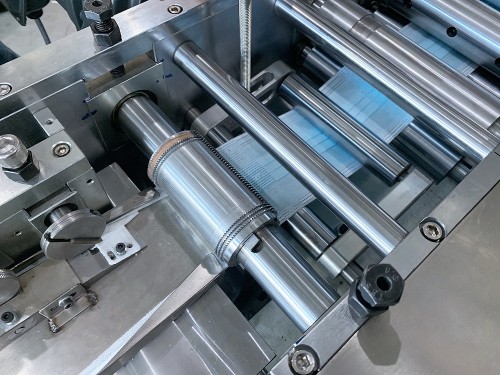

The automatic mask body machine is mainly used for the automatic forming of flat masks. After the entire fabric roll is unfolded, it is driven by rollers. The fabric is automatically unfolded by automatic hemming, hemming and the bridge of the nose. On both sides, sealing is achieved by ultrasonic welding on both sides After the ultrasonic side is sealed, use a cutting machine to cut and automatically control the entire process. Only one person is required to operate this machine. Scientific and reasonable mechanical transmission configuration makes the machine extremely efficient. The special welding wheel and cutting wheel design have good wear resistance Properties, greatly extending the life of the product.

Any questions or needs, welcome to email.
